SH97R6

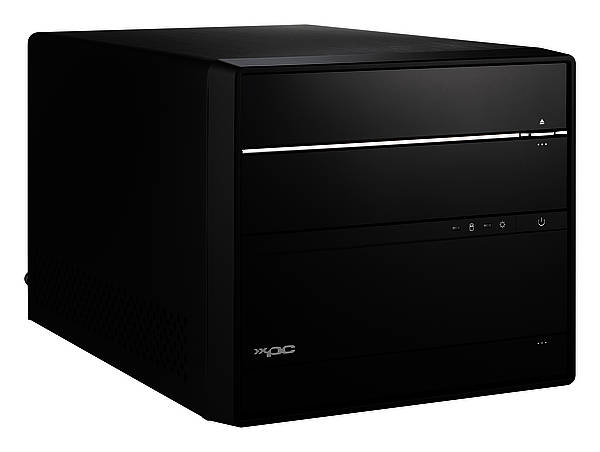

The Shuttle XPC Barebone SH97R6 not only is the eycatcher on your desk thanks to its compact aluminium chassis, it also is a sophisticated solution that packs high performance and flexibility. A value Intel Celeron processor of the Haswell-Series can be enough of a basis to build a complete Mini PC system that connects to three displays at once. If an Intel Core i3 processor or higher is used, playback of 4K-videos on one Ultra-HD-display becomes a reality. The SH97R6 has enough room to accommodate a high-end dual-slot graphics card that makes it cope with the latest games and 3D/CAD applications. Even when fully-loaded with a Core i7 processor, a dual-slot graphics card, 32GB of DDR3 memory, an mSATA-SSD, two hard disks in RAID mode and a Blu-ray drive - the XPC Barebone SH97R6 does the job. Reliably and at a low noise level.

• Chassis
  Black aluminium chassis
  Front panel: glossy plastic with horizontal line texture
  Storage bays: 1 x 5.25" (external), 2 x 3.5" (1x internal, 1x external)
  With the optional accessory PHD3 two 2.5" drives
  can be installed into one 3.5" bay.
  Front doors for I/O ports and storage drives
  Kensington Security Slot at the back panel (also called K-Slot
  or Kensington lock) as a part of an anti-theft system
  Dimensions: 33.2 x 21,6 x 19.8 cm (LWH), 14.2 litre
  Weight: 3.5 kg net / 5.0 kg gross
• Mainboard / Chipset
  Shuttle "FH97", Shuttle form factor
  proprietary design for XPC Barebone SH97R6
  Dimensions: 270 x 195 mm
  Chipset: Intel® H97 Chipset
  (Intel® DH82H97 PCH, code name "Wildcat Point")
  Platform Controller Hub (PCH) as Single-Chip-Solution
  Passive chipset cooling with heat sink
  The Northbridge is integrated into the processor.
  Solid Capacitors for sensitive areas provide excellent
  heat resistance for enhanced system durability
• BIOS
  AMI BIOS, SPI Interface, 32 MBit Flash-ROM with SPI interface
  Supports PnP, ACPI 3.0, Hardware Monitoring
  Supports Unified Extensible Firmware Interface (UEFI) [3]
  Supports boot up from external USB flash memory
• Power supply
  Built-in 300 Watt mini switching power supply (PC61J)
  AC input voltage: supports 100~240V, 50~60 Hz
  80 PLUS® Bronze compliant: the PSU provides at least
  82/85/82% of efficiency at 20/50/100% of load.
  Active PFC circuit (Power Factor Correction)
  ATX main power connectors: 2x10 and 2x2-pin
  Graphics power connector: 6-pin
  Other connectors: 4x SATA, 2x Molex, 1x Floppy
• Operation System
  This system comes without operating system.
  It is compatible with Windows 8 / 8.1, Windows 7 and Linux
• Processor support
  Socket LGA 1150 (H3) supports the fourth generation of
  Intel Core i7 / i5 / i3, Pentium and Celeron processors
  Maximum supported processor power consumption (TDP) = 95W
  Codename "Haswell", 22nm process technology, up to 8 MB of L3 cache
  Supports "Haswell Refresh" processors.
  Not compatible with older Socket LGA 1155 processors.
  Does not support the unlock-function of Intel K-Series processors.
  The processor integrates PCI-Express, memory controller
  and the graphics engine on the same die (performance features
  depending on processor type)
  Please refer to the support list for detailed processor support information at global.shuttle.com.
• Processor cooling
  Shuttle I.C.E. (Integrated Cooling Engine)
  Advanced I.C.E. Heatpipe technology with 3 pipes
  Temperature controlled 92 mm fan
  SilentX cooling and noise reduction technology with Active Airflow
• Memory support
  4 x 240-pin slots
  Supports DDR3-1600/1333 SDRAM memory (PC3-12800/10600) [2]
  Supports 2+2 Dual Channel mode
  Supports max. 8 GB per DIMM, maximum total size of 32 GB
• Integrated Graphics
  The features of the integrated Intel HD graphics function
  depend on the processor type used.
  Supports OpenCL 1.2, DirectX 11.1, OpenGL4.1 and DX extensions,
  SH97R6 features three digital video outputs [11]:
  - HDMI v1.4 (supports 1080p/60 and 2160p/30)
  - 2x DisplayPort v1.2 (support 1080p/60 and 2160p/60)
  Supports displays with 4K Ultra HD resolution at 3840 x 2160 [8]
  Supports three independent FullHD displays with the integrated graphics function
  Supports more displays in combination with a discrete graphics card [7]
  Supports Blu-ray (BD) playback with HDCP content protection
  Supports multi-channel digital audio over the same cable
• PCIe Expansion Slots
  1x PCI-Express x16 v3.0 slot (PEG, for graphics cards only)
  1x PCI-Express x4 v2.0 slot
  This XPC supports dual-slot (double-width) graphics cards -
  in this case the second PCI-Express slot will be occupied.
  Graphics power connector: 6-pin
• Mini PCIe Slots
  This XPC features two Mini PCI Express expansion slots:
  1) half-size, supports PCIe 2.0 and USB 2.0, e.g. for WLAN cards [4]
  2) full-size, supports PCIe 2.0, SATA 3.0 (6 Gbps) and USB 2.0
  e.g. for Mini SATA (mSATA) flash memory cards [5]
• 7.1-channel HD audio
  7.1 channel High Definition Audio with Realtek ALC892 codec
  Analog: line-out (7.1-ch), line-in, microphone, AUX input (onboard)
  Digital Audio via HDMI and DisplayPort outputs
• Gigabit LAN
  Realtek RTL 8111G Ethernet network controller
  PCI Express interface
  IEEE 802.3u 1000Base-T compliant
  Supports 10 / 100 / 1.000 MBit/s operation
  Supports Wake-on-LAN (WOL)
• SATA connectors
  4x Serial ATA, max. 6 Gbps (onboard)
  1x External Serial ATA (eSATA), max. 3 Gbps (back panel)
  Supports Intel Rapid Storage Technology (RST 12, Raid 0/1/5/10, JBOD)
  1x mSATA Mini-Slot for flash memory cards, max. 6 Gbps [5]
  Supports Smart Response Technology (SRT, "SSD Caching")
• Front Panel connectors and buttons
  Microphone input
  Headphone output (line-out)
  2x USB 3.0
  2x USB 2.0 (1x Quick charge with up to 2A) [9]
  Power button
  Power indicator (blue LED)
  Hard disk drive indicator (yellow LED)
• Back Panel connectors
  HDMI v1.4
  2x DisplayPort v1.2 [10]
  2x USB 3.0
  4x USB 2.0
  GigaBit LAN (RJ45)
  External Serial ATA (eSATA 3Gb/s)
  7.1-ch Audio line-out (2x rear/front, bass/center, surround/back)
  Audio Line-in
  Clear CMOS button
  Optional: serial port RS-232 (Accessory: H-RS232)
  3x perforation for optional WLAN antennas [4]
• Other connectors
  4x USB 2.0 (two 2x5-pin, one set is occupied)
  1x RS232 (2x5-pin) for optional accessory H-RS232
  2x fan connectors (4 pins), one connector is occupied
  Audio AUX input / Line-in (4-pin)
  Low Pin Count header (LPC, 2x 10 pins, 2 mm pitch size)
  Digital Audio S/PDIF header (3-pin)
  Occupied front connectors: USB 3.0/2.0, audio, power buttons, LEDs
• Included Accessories
  Multilanguage XPC Installation Guide (EN, DE, FR, ES, JP, KR, SC, TC)
  32/64 bit driver disk
  2x Serial ATA cables
  Power Cord
  Screws
  Heatsink Compound
  Protector for CPU socket (do not use, if heat-pipe or fan is mounted)
• Optional Accessories
  PHD3 - 3.5" to 2.5" adapter
  H-RS232 - Backpanel COM port adapter for RS232 serial interface
  WLN-C- Wireless LAN 802.11n module with external antennas [4]
  PC63J - 500W power supply, 80 PLUS® Silver
• Environmental Spec
  Operating temperature range: 0~35°C
  Relative humidity range: 10~90% (non-condensing)
• Certifications / Compliance
  EMI: FCC, CE, BSMI, C-Tick
  Safety: ETL, CB, BSMI, TÜV
  Other: RoHS, ErP 2013 Lot 6, Energy Star 5
• Conformity
  This device is classed as a technical information
  equipment (ITE) in class B and is intended for use in
  the living room or office. The CE-mark approves the
  conformity by the EU-guidelines:
  - EMV-guideline 89/336/EWG electromagnetic tolerance
  - LVD-guideline 73/23/EWG use of electric devices
  within certain voltage-limits
